PROCUT HF WS 23

This wire saw is driven by electric and equipped with a 11KW high frequency motor.

Technical Specification

PARAMETERS 3-PHASE ( 380V )
Rated input power 23 Kw
Diameter of saw blade Max 1600mm
Cutting depth Max 720mm
Speed 750 RPM
Average cutting efficiency of wall saw (300mm thickness with moderate steel) 20m/Hr ( 6 m²)

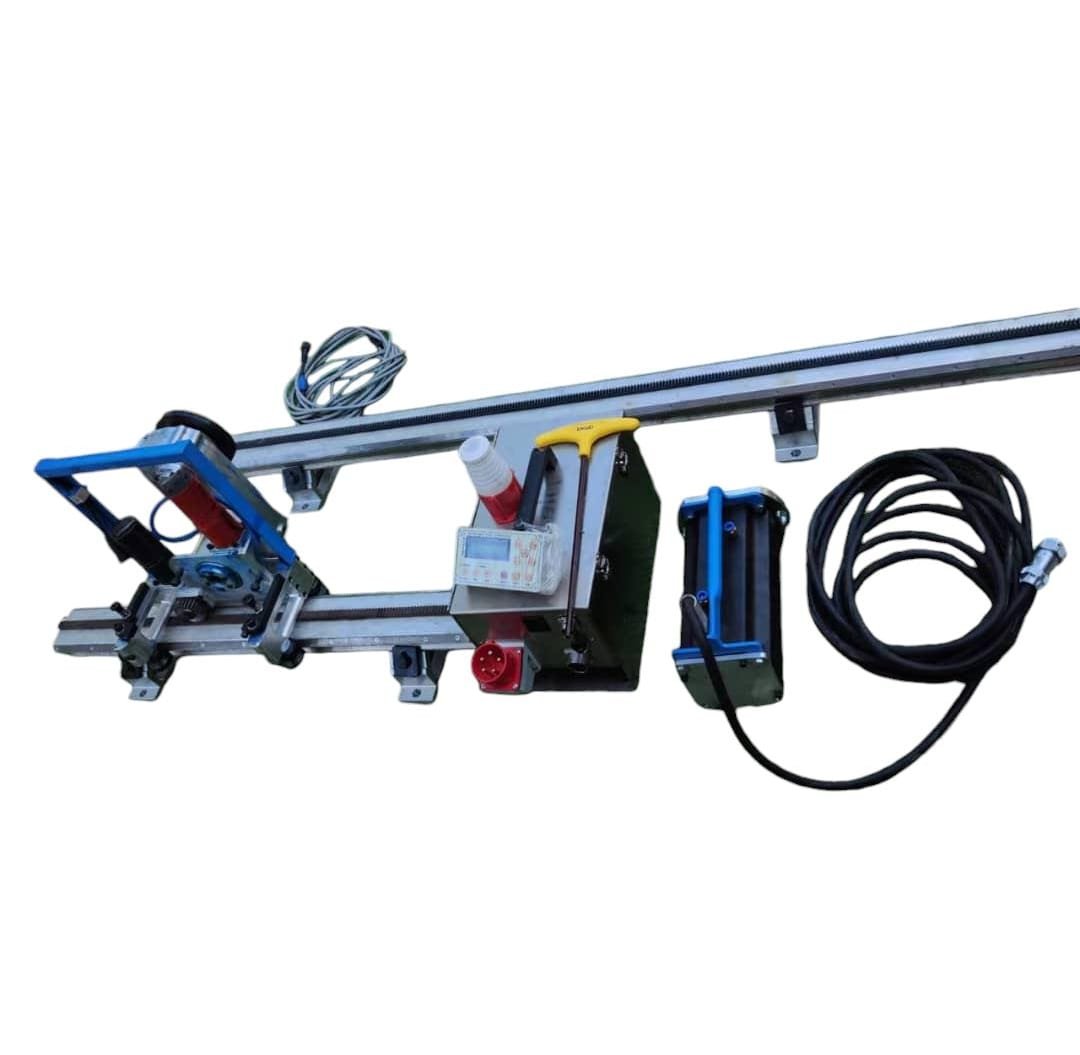

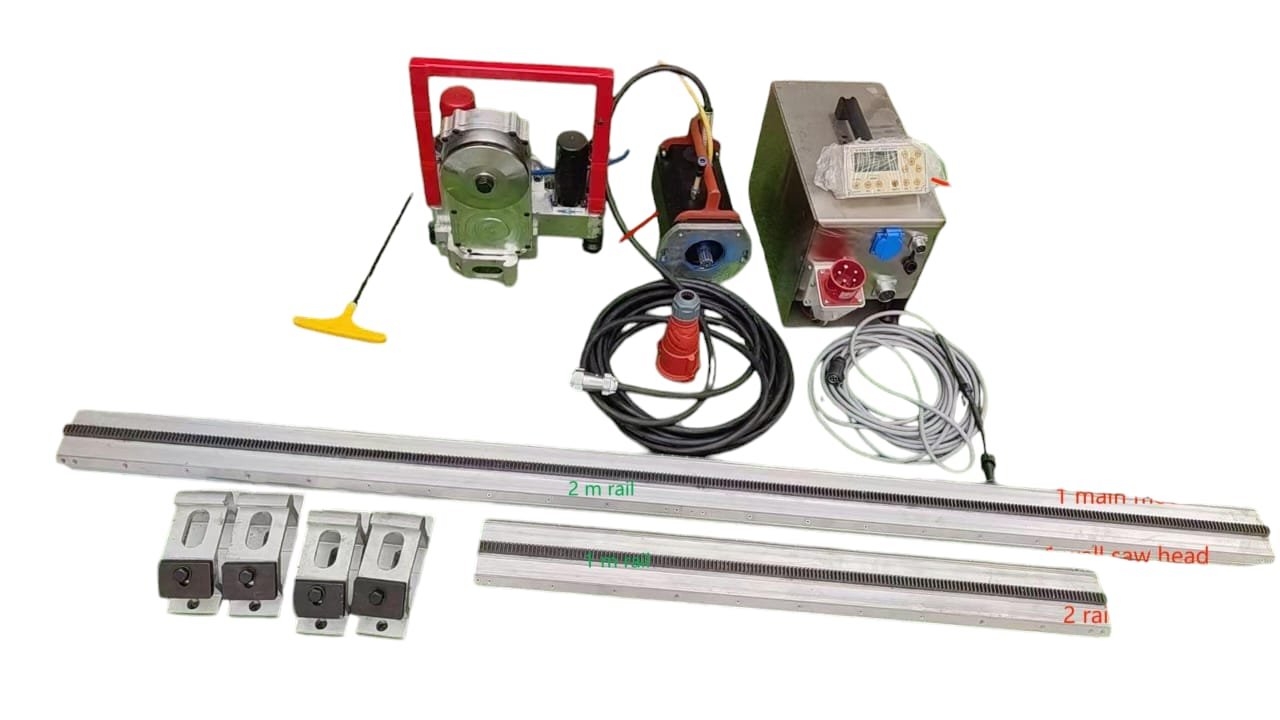

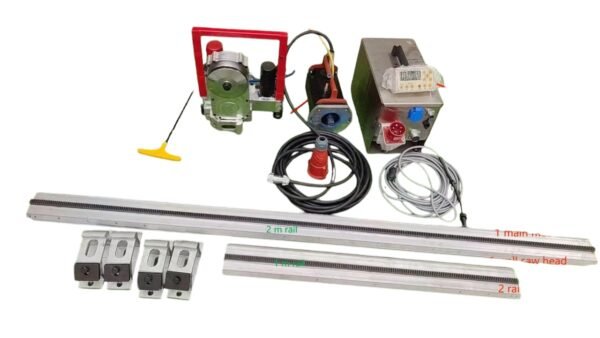

Wall saw system Wire saw system
Wall Saw head 34 kg / track 1.2mtr :

11kg / power unit : 16 kg

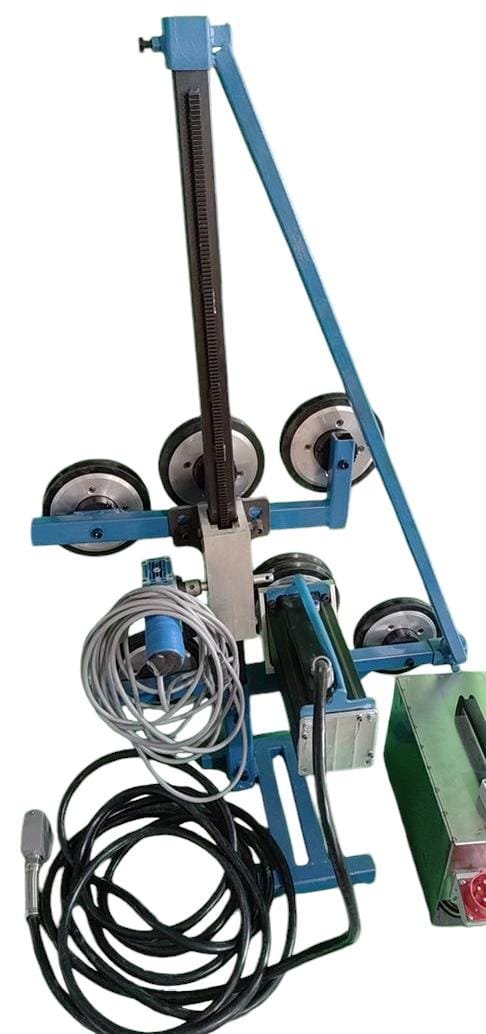

Wire saw head with drive pulley: 39kg, wire saw stand with frame & storage pulley : 110kg



Documents For Download

HF 23KW tech spec
