Hydraulic Wall Saw HWS 600

Hydraulic Wall Saw HWS 600
Hydraulic Wall Saw HWS 600 - Image 2
Categories , Tag

Standard configuration:

  • 1 sawing head 600TM
  • 1 hydraulic power pack (ok-60TM)
  • 1 hose set (6 hydraulic hoses)
  • 1 rail 2 m
  • 1 rail 1 m
  • 4 mounting brackets for rail
  • 2 stopper for rail´s end
  • 1 blade guard
  • 1 tool box
  • 1 blade 800mm
Call Us

Description

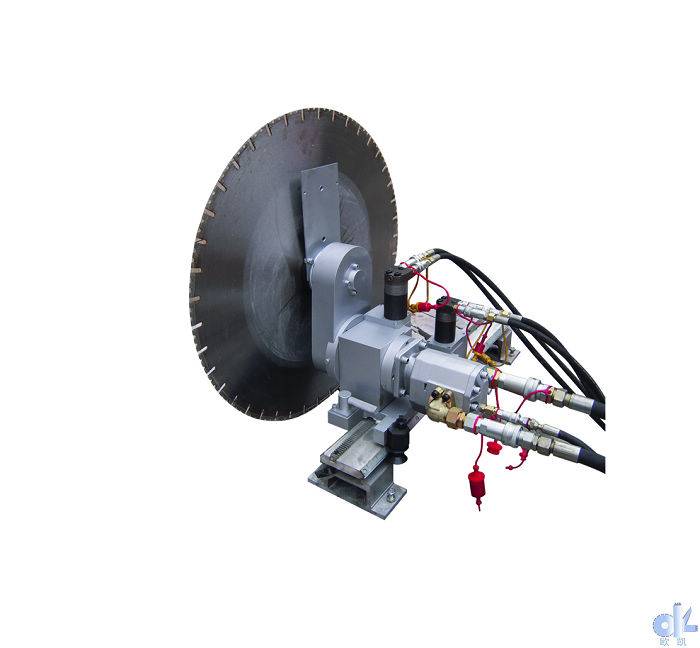

  • Hydraulic  wall saw (HWS-600)

    Ideal cutting speed using 3 stage adjustment.

    Simple operation directly at the power pack with few hand movements.

    Swivel arm can be located by 360.

    Techincal  data

    1.Specification
    Max start up blade diameter 800mm
    Max using blade diameter 1400mm
    Max cutting depth 620mm
    2.Sawing head
    Output axle diameter 60mm
    Max working pressure 200bar
    Blade cutting method Automatic
    Speed of blade 500/900/1300rpm
    Weight 40kg

Specification

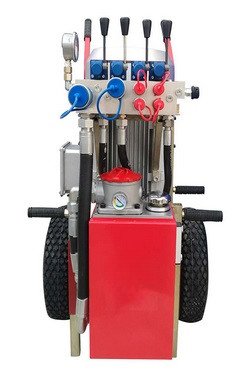

3.Hydraulic power pack( OK-600)

Input power: 25kw

Max fuel flow: 80L/min

Voltage: 380V/400V,3-phase ,50HZ

Control method: Hydraulic automatic

Weight (include Oil): 220kg

Dimensions(L*B*H): 65*60*100 cm
